Carbon Fiber Fabric Plain Weave Intermediate Modulus 6k 38″/96.52cm 5.6oz/191gsm Toray T830-Sample

SKU: F-2330-Sample

$4.00

In Stock

    Add to Compare
    Categories: , ,

    Please Note: Due to the nature of composite materials, coloration of fabric may change or darken when resin is introduced to your part/fabric.

    Description

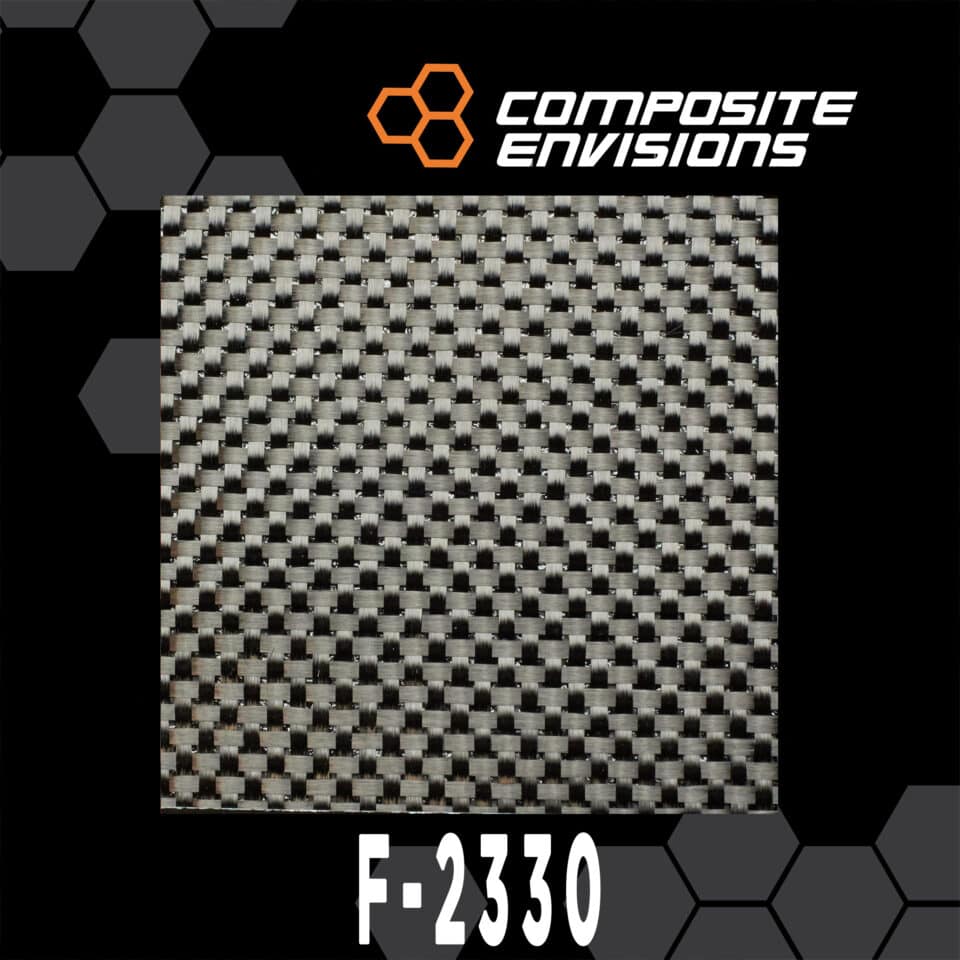

    This fabric is made from high strength Toray T830 Yarn – This fabric has a width of 38″, tow size of 6k and is woven in a plain weave. This 6k Intermediate Modulus Carbon Yarn is a smaller looking yarn vs a normal 6k Carbon yarn. Due to the size of the fiber, this 6k fabric gives the appearance of a 3k. This material has a very unique visual appearance. Thickness .009″. This fabric is great for structural buildup and will yield a much stiffer product than a standard modulus 191 gsm fabric.

    This roll is 38″ (96.52cm) wide and the fabric is sold by the linear yard. The unit price displayed is for 1 linear yard, all volume discounts will be automatically applied when selecting larger quantities of fabric when added to your shopping cart, as indicated in the table above with quantity discount ranges for units purchased.

    **Please Note: This fabric is being offered at a discount due to it being uncertified and will soon be discontinued.  Product is still new in box and in excellent condition.**

    We cannot except exchanges or will issue refunds for purchases of this product.

    Additional information

    Weight

    Material Warp

    Ends Per Inch

    Material Weft

    Pics Per Inch

    Yarn Size Warp

    Yarn Size Weft

    Color

    Tow Size

    Weave

    Modulus

    Shipping

    Brand

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

    Our fabrics are sold by the linear yard. The unit price displayed is for 1 linear yard; all volume discounts will be automatically applied when selecting larger quantities of fabric when added to your shopping cart, as indicated in the table above with quantity discount ranges for units purchased. Please purchase the number of linear yards that you require. When purchasing multiple yards of the same fabric, you will receive one continuous length of that material. We carefully take that material and roll it onto a cardboard core and wrap clear plastic or Kraft paper over it, making sure to keep the fabric in its first quality condition. We pride ourselves on having one of the best material handling crews possible.
    Resin consumption is provided for the approximate amount of resin by weight in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and depends on the user’s techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, not stronger. The average rule of thumb is around 45% (+/- a couple of percent). To calculate actual resin % in your part, a burn test is used. For example, you have a part weighing 100 grams, and you would burn off the resin, which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing, it is hard to give an accurate amount of resin needed to purchase for making your part. However, you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
