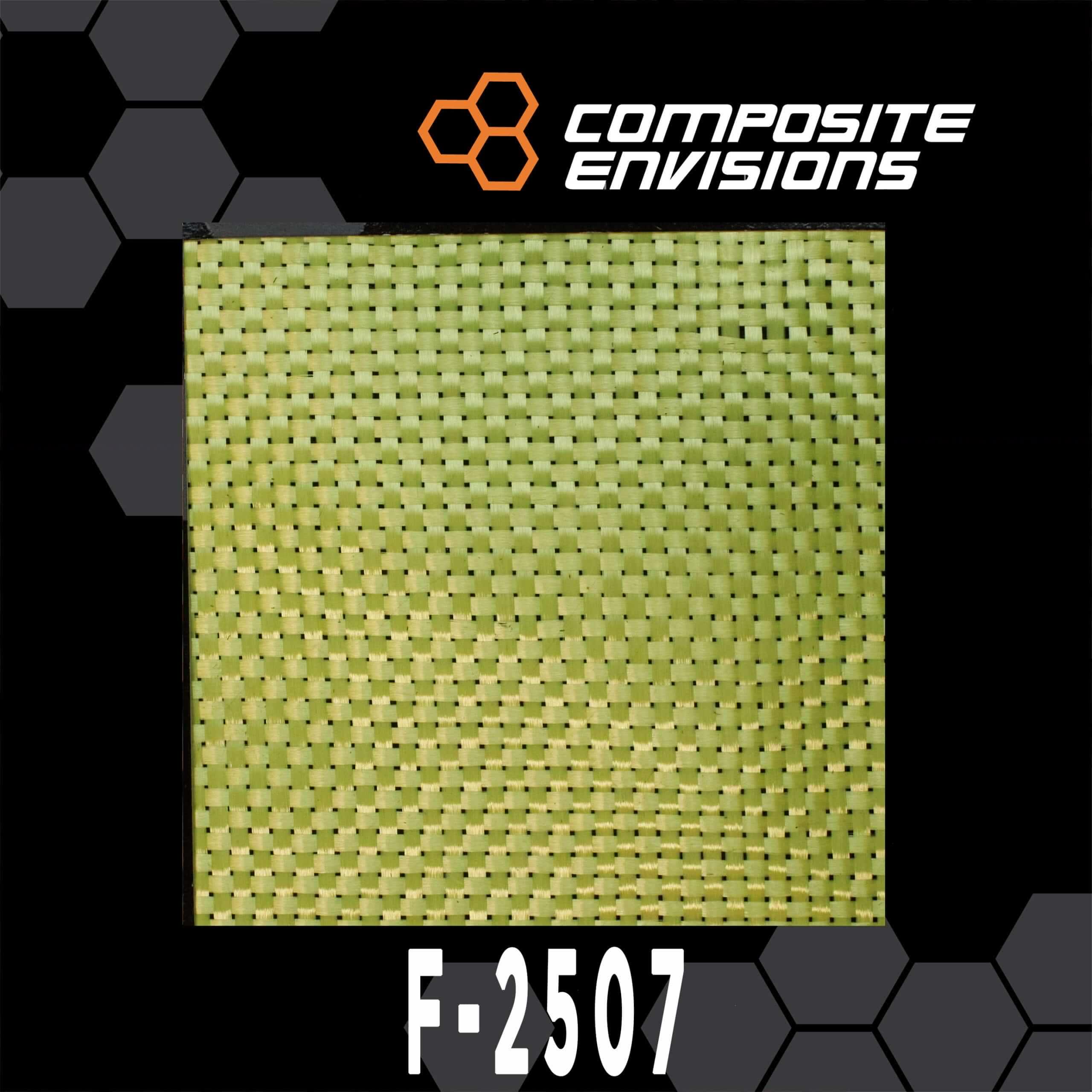

Aramid Plain Weave 1500d 5oz/170gsm

Model:
F-2507
Unit of Measure:
Linear Yard
$23.91
Quantity Buy 5 - 9 Buy 10 - 24 Buy 25 - 49 Buy 50 - 99 Buy 100 or above
Per Linear Yard $ 22.71 $ 22.24 $ 21.52 $ 20.32 $ 19.13
Bulk Pricing
Qauntity
Per Linear Yard
Buy 5 - 9
Buy 10 - 24
Buy 25 - 49
Buy 50 - 99
Buy 100 or above
$ 22.71
$ 22.24
$ 21.52
$ 20.32
$ 19.13

Aramid Plain Weave 1500d 5oz/170gsm

Product Specs
Unit of Measure Linear Yard
Material Warp Kevlar
Material Weft Kevlar
Weave Plain Weave
Ends Per Inch 13
Pics Per Inch 13
Yarn Size Warp 1500d
Yarn Size Weft 1500d
Tow Size 1500d
Weight 5oz/170gsm
Width 50"/127cm, 60"/152.4cm
Thickness
Resin Consumption @ 45% Resin to Fabric by Weight 4.09opsy/137gsm

The resin consumption provided is for the approximate amount of resin by weight, contained in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and is dependent upon users techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, NOT stronger. Average rule of thumb is around 45% (+/- a couple percent). To calculate actual resin % in your part a burn test is used. For example you have a part weighing 100 grams, you would burn off the resin which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing it is hard to give an accurate amount of resin needed to purchase for making your part. However you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
