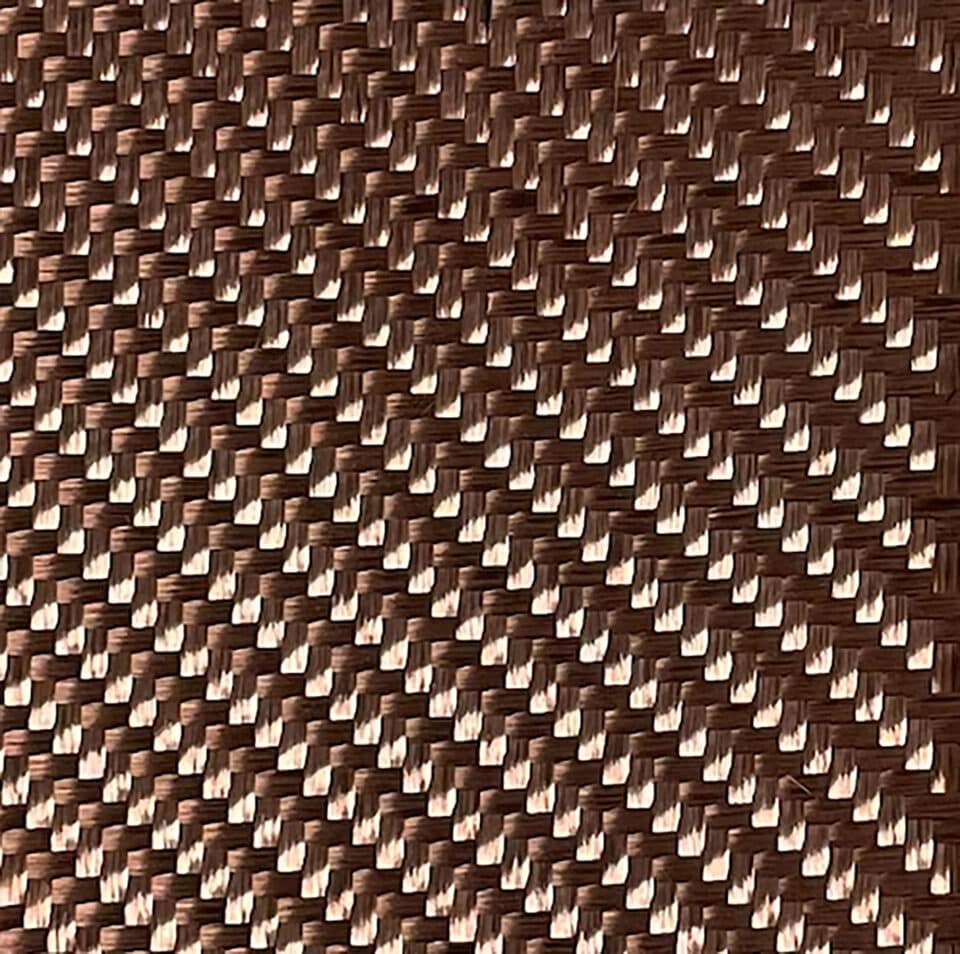

This is 100% Carbon Fiber manufactured with a Toray T-300 3k tow which has a copper metalized coating applied to one side. This means that this carbon fiber cloth has been coated with real copper in a very fine mist which is thick enough to obtain the beauty of natural copper, but thin enough to let resin permeate the material and keep the fabric conformable. The face side is copper in color, whereas the other side is standard carbon fiber black with weblock skrim.
This Fabric is a high density 3k carbon fiber based upon our F-1902-50-WL fabric. With a width of 50″, tow size of 3k, woven in a 2×2 twill weave pattern, is the most commonly used pattern in the automotive industry. The material is a high density weave, which means it woven tighter than most of our competitors’ fabrics, which along with the weblock stabilization, helps to ensure a straight weave and a better looking final product.
To harden the raw fabric into a usable form, you will need the appropriateresin or epoxy for your project.
Disclaimer: This material has been stabilized(Web-Locked) to help hold the weave in place, which may affect its ability to easily conform to complex shapes.
Only logged in customers who have purchased this product may leave a review.
How We Sell - Fabrics
Our fabrics are sold by the linear yard, with the exception of our samples which are a single 4"x4" (or 5"x7") piece. The unit price displayed is for 1 linear yard; all volume discounts will be automatically applied when selecting larger quantities of fabric when added to your shopping cart, as indicated in the table above with quantity discount ranges for units purchased.
Please purchase the number of linear yards that you require. When purchasing multiple yards of the same fabric, you will receive one continuous length of that material. We carefully take that material and roll it onto a cardboard core and wrap clear plastic or Kraft paper over it, making sure to keep the fabric in its first quality condition. We pride ourselves on having one of the best material handling crews possible.
Resin Consumption
Resin consumption is provided for the approximate amount of resin by weight in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and depends on the user’s techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, not stronger. The average rule of thumb is around 45% (+/- a couple of percent). To calculate actual resin % in your part, a burn test is used. For example, you have a part weighing 100 grams, and you would burn off the resin, which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing, it is hard to give an accurate amount of resin needed to purchase for making your part. However, you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
