Purple Reflections Carbon Fiber Fabric 2×2 Twill 3k 50″/127cm 5.9oz/200gsm

SKU: F-1979

$83.19$89.43

Add Web-Lock to this Fabric: Web-Lock is a fabric stabilization process that locks the filaments of the fabric together, ensuring that the fabric maintains the original weave alignment even after being folded, wrinkled, or even cut into a smaller piece. Web-Lock can be applied to almost any fabric starting at $6.00/yard.

Click here to learn more about Web-Lock Stabilization.

*If ordering less than 10 yards of Web-Lock fabric a $25.00 set-up fee will apply.

**Quantity discounts for Web-Lock products will be applied in cart. Please allow a 2-3 day lead time on Web-Lock orders before shipping.

Clear

Title Range Discount
Per Linear Yard 5 - 9 $81.53
Per Linear Yard 10 - 24 $79.86
Per Linear Yard 25 - 49 $78.20
Per Linear Yard 50 - 99 $76.53
Per Linear Yard 100 + $74.87
Add to Compare
Categories: , , ,

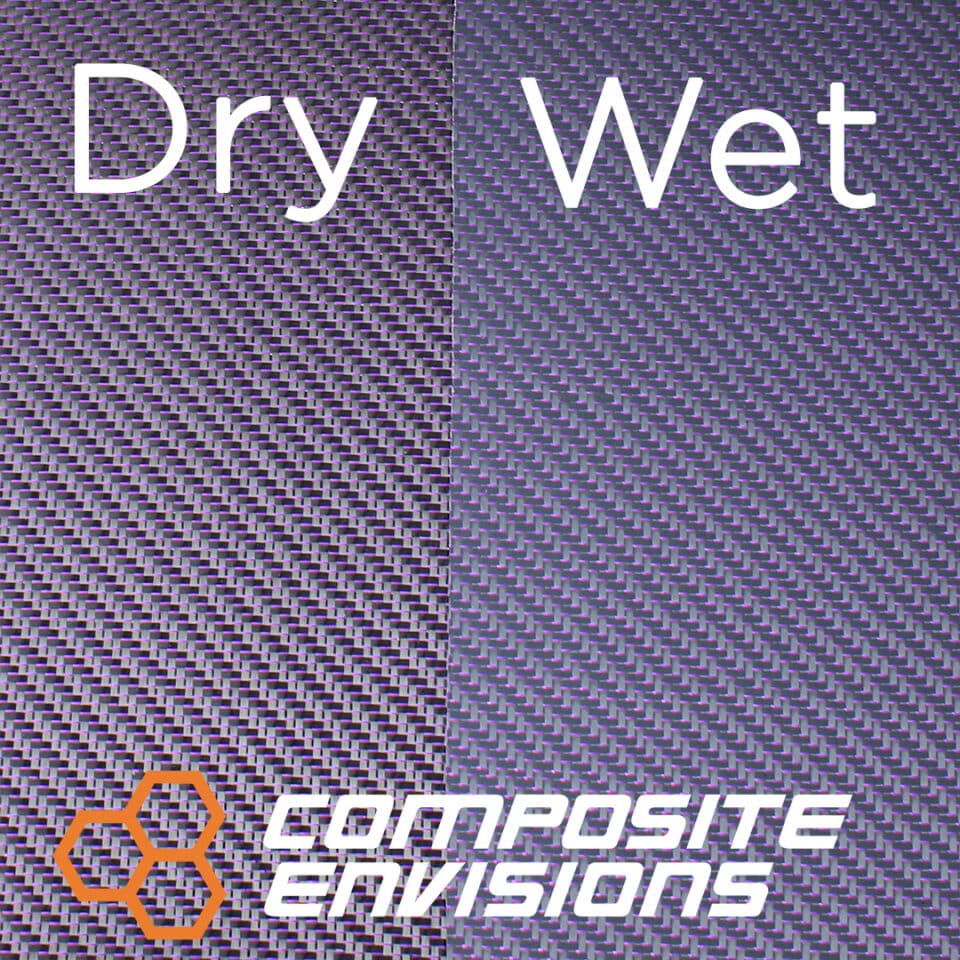

Please Note: Due to the nature of composite materials, coloration of fabric may change or darken when resin is introduced to your part/fabric.

Brand:

Description


This fabric has a width of 50″, weight of 5.9oz/200gsm, tow size of 3k and is woven in a 2×2 twill weave.

The Reflections™ line of carbon fiber is exclusive to Composite Envisions and has been one of the best selling group of fabrics for over a decade. This material is soft and conforms well to curves, making it a popular fabric to work with for beginners and professionals alike.

If you are looking for a unique, eye-catching material to give a truly distinctive look, then here it is.

To harden the raw fabric into a usable form, you will need the appropriate resin or epoxy for your

0/5 (0 Reviews)

Additional information

Color

Ends Per Inch

Pics Per Inch

Unit of Measure

Weave

Yarn Size Warp

Yarn Size Weft

Tow Size

Weight

Brand

Material Warp

Material Weft

Add Web-Lock Stabilization

,

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

How We Sell - Fabrics

Our fabrics are sold by the linear yard, with the exception of our samples which are a single 4"x4" (or 5"x7") piece. The unit price displayed is for 1 linear yard; all volume discounts will be automatically applied when selecting larger quantities of fabric when added to your shopping cart, as indicated in the table above with quantity discount ranges for units purchased.

Please purchase the number of linear yards that you require. When purchasing multiple yards of the same fabric, you will receive one continuous length of that material. We carefully take that material and roll it onto a cardboard core and wrap clear plastic or Kraft paper over it, making sure to keep the fabric in its first quality condition. We pride ourselves on having one of the best material handling crews possible.

Resin Consumption

Resin consumption is provided for the approximate amount of resin by weight in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and depends on the user’s techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, not stronger. The average rule of thumb is around 45% (+/- a couple of percent). To calculate actual resin % in your part, a burn test is used. For example, you have a part weighing 100 grams, and you would burn off the resin, which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing, it is hard to give an accurate amount of resin needed to purchase for making your part. However, you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
