Glass Vac 3 Gallon Aluminum Vacuum Chamber

SKU: 1881


    Add to Compare


    This is a complete BestValueVac vacuum chamber setup designed built and 100% tested in Chicago, Illinois. With their unique patent pending gasket design (Utility Patent #14/533,548) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of the system) allowing customers to instantly take it off and flip it over. No adhesives are used! A simple gasket design even allows you to place the lid on the chamber somewhat off center and still pull a full vacuum. This is a feature that most other vacuum chambers do not offer. The maximum allowed temperature of this chamber is 160°f. The components of this chamber are rated at higher temperatures however as a vacuum vessel, limit maximum operational temperature to 160°f. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

    NOTICE: CHAMBER MAY NOT COME WITH HANDLES DUE TO DESIGN UPDATE(We are sorry for the Inconvenience this may cause)

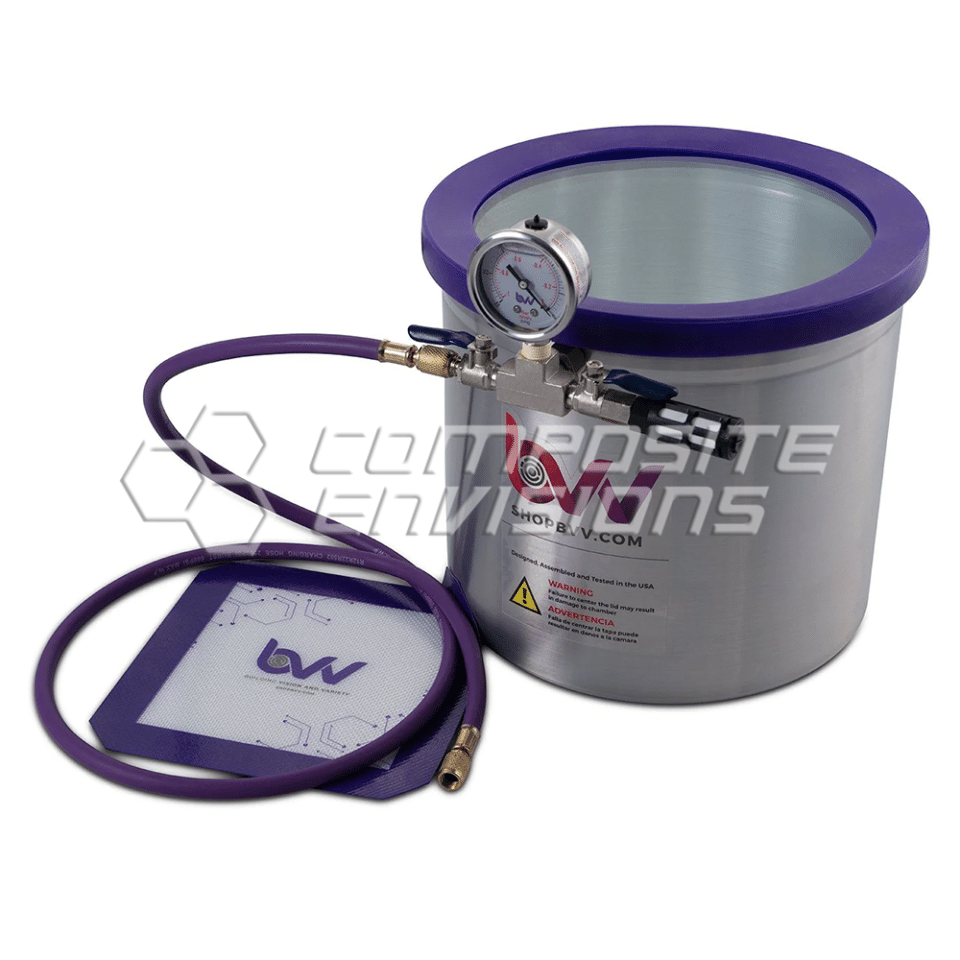

    This Kit Includes:
    – (1) Aluminum Chamber
    – (1) Industrial grade silicone gasket
    – Gasket can withstand 390°F max temp.
    – 60A durometer density
    – (1) Glycerin filled vacuum gauge (must be regulated upon arrival)
    – Max vacuum -29Hg ( /-.5Hg) at sea level
    – (1) Leak free nickel plated air manifold
    – Vacuum release valve and vacuum connect valve
    – (1) 1/4 Female flare universal pump adapter for vacuum hose
    – (1) 5ft clear steel reinforced vacuum hose
    – (1) 8″x8″ Platinum cured silicone non stick VacPad
    – (1) 50 Micron air filter

    Internal Dimensions:
    9″ Tall X 10″ Diameter
    Wall Thickness is 4mm

    Compatibility Explanation:

    GlassVac chambers are compatible with all solvents and stabilization resins. Best Value Vacs only recommends and warranties GlassVac chambers for resin infusion and wood stabilization.The lid may be cleaned with any solvent or cleaning agent.
