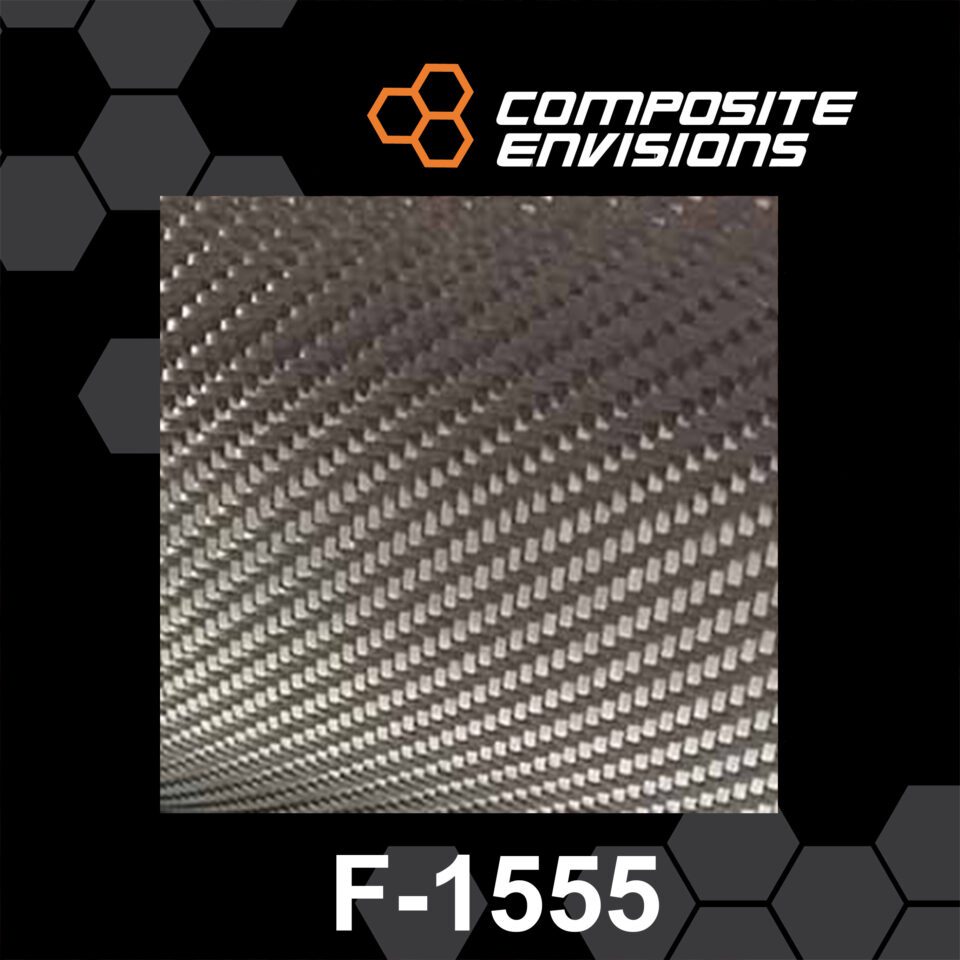

This material is a softer version of our normal silver aluminized fabric. The material is often referred to as silver carbon fiber, although it is not actual carbon fiber, as all carbon fiber is black. This fabric is nearly identical to Hexcel Texalium however due to the U.S. plant shutdown we have this material manufactured elsewhere to keep costs reasonable while allowing us to coat nearly any fabric style with this coating. Because we are more involved in the manufacturing process we can ensure a more uniform quality. This fabric has a width of 40″, the yarn used is comparable in size and appearance to a carbon fiber tow size of 3k and is woven in a 2×2 twill weave. This is the most widely used weave pattern across multiple industries. This material was woven by reputable weavers across the US, and their long lasting presence in the composite industry will ensure you receive a quality material.
This is a sample sized at 4″x4″.
To harden the raw fabric into a usable form, you will need the appropriate resin or epoxy for your project. For the colored materials, we suggest one of our resins which cure clear.
Color Disclaimer: Â Due to individual user’s monitor settings, calibrations and lighting sources, the colors that appear on your screen may not be an exact representation of the actual product.
Only logged in customers who have purchased this product may leave a review.
How We Sell - Fabrics
Our fabrics are sold by the linear yard, with the exception of our samples which are a single 4"x4" (or 5"x7") piece. The unit price displayed is for 1 linear yard; all volume discounts will be automatically applied when selecting larger quantities of fabric when added to your shopping cart, as indicated in the table above with quantity discount ranges for units purchased.
Please purchase the number of linear yards that you require. When purchasing multiple yards of the same fabric, you will receive one continuous length of that material. We carefully take that material and roll it onto a cardboard core and wrap clear plastic or Kraft paper over it, making sure to keep the fabric in its first quality condition. We pride ourselves on having one of the best material handling crews possible.
Resin consumption is provided for the approximate amount of resin by weight in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and depends on the user’s techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, not stronger. The average rule of thumb is around 45% (+/- a couple of percent). To calculate actual resin % in your part, a burn test is used. For example, you have a part weighing 100 grams, and you would burn off the resin, which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing, it is hard to give an accurate amount of resin needed to purchase for making your part. However, you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
